SecuRope Neo Pro cable lifeline system on ground
The horizontal lifeline system SecuRope Neo Pro, a key product of Fallprotec's Mansafe system roof offerings, is a cable-based fall arrest equipment designed for ground, wall and ceiling configuration. This fall arrest system features specific intermediate anchors that absorb energy in the event of a fall. With its reduced cable deflection, the SecuRope Neo Pro is particularly suited for locations with low fall clearance, making it an optimal choice within fall protection systems for roofs. Fallprotec's engineering department has meticulously designed a wide range of fixing assemblies to accommodate various types of host structures, such as sandwich panels and standing seam roofs, ensuring compatibility and safety in our Mansafe system roof installations.
Advantages
- Up to 4 users
- 15m (49’) max. between anchors
- Freehand system
- Undeformable system
- Energy absorbing on orientable intermediate anchors
- Wide range of brackets for all structures or roofing
- Possibility of custom-made solutions with the Fallprotec’s engineering department
Applications
- Fall arrest
- Fall restraint
- Maintenance of industrial roofs
- Maintenance of residential roofs
- Maintenance of architectural highlights and monuments roofs
- Maintenance of airport roofs
- Maintenance of commercial office and mall roofs

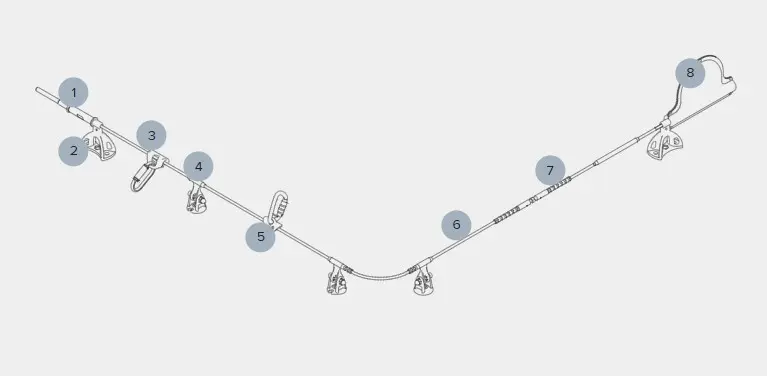

Horizontal SecuRope Neo Pro lifeline system on groundRope lifeline system on ground
1 - Line Tensioner LDV137
2 - End anchor LDV002
3 - Opening glider LDV001
4 - NEO Anchor LDV043
5 - Captive glider LDV060
4 - Cable Ø 8 mm construction 7x7 LDV006
7 - Turnbuckle for in line tensioning LDV138
8 - "Off line" absorber LDV143-A

Duplex Captive glider for ground or wall configuration LDV111=D

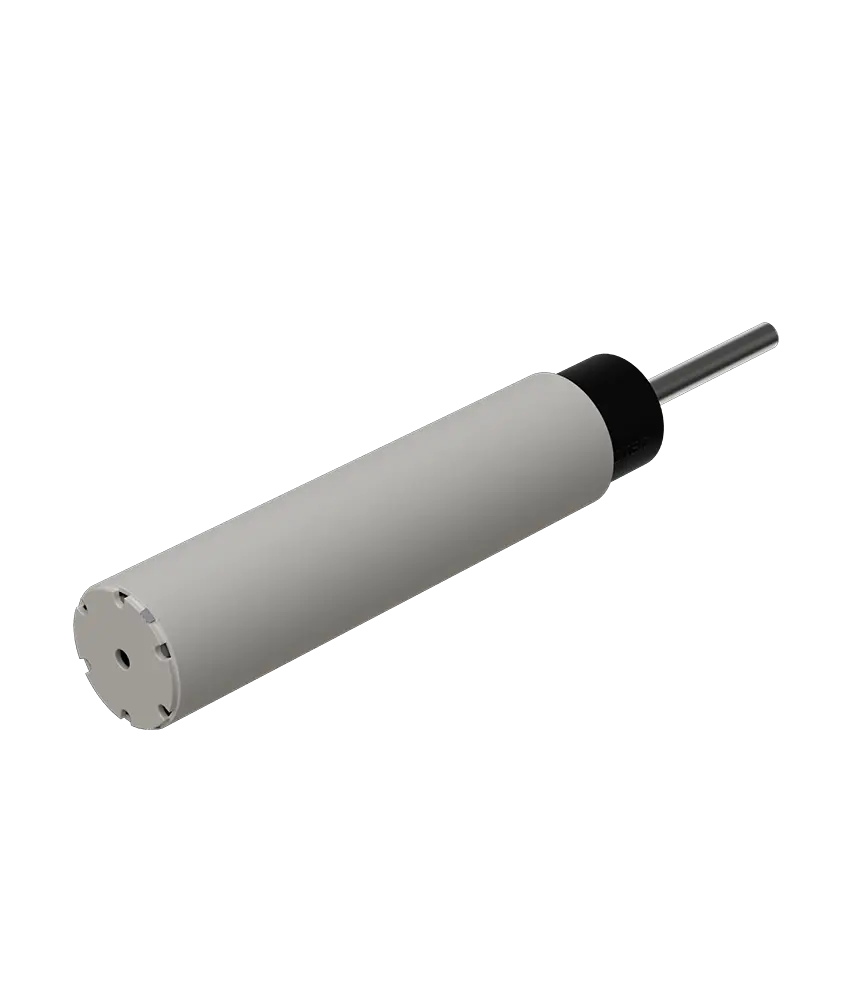

Energy absorber provided with spring LDV032

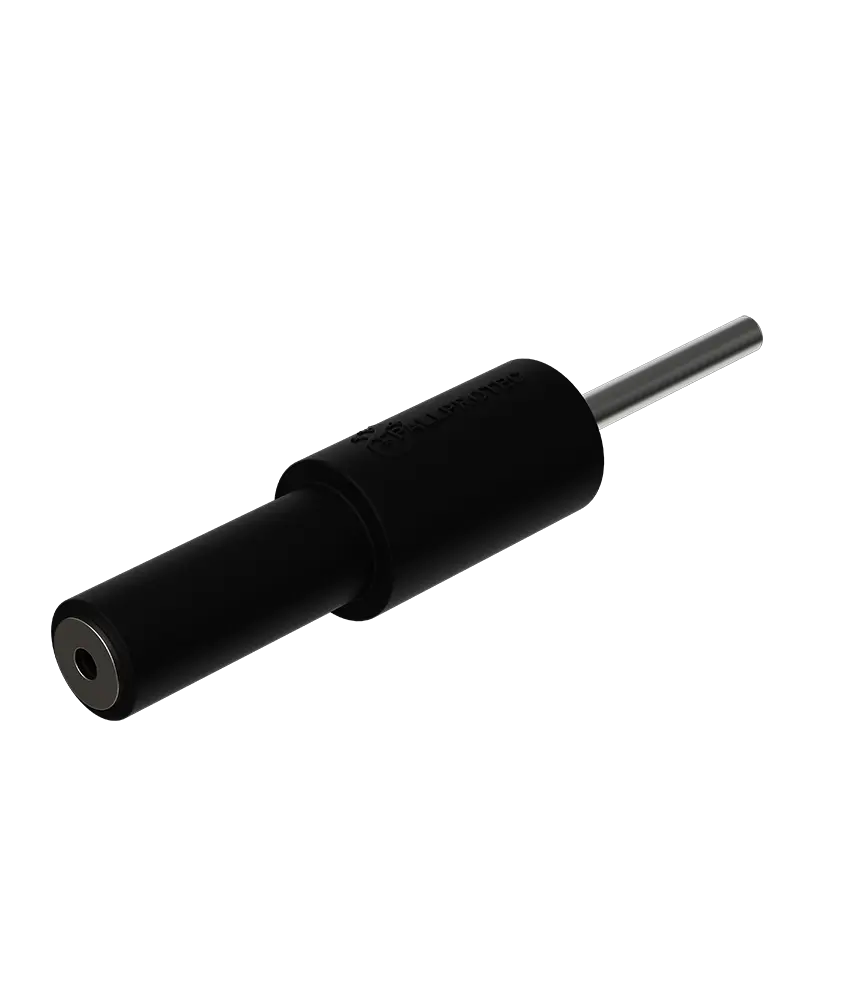

Energy absorber LDV003

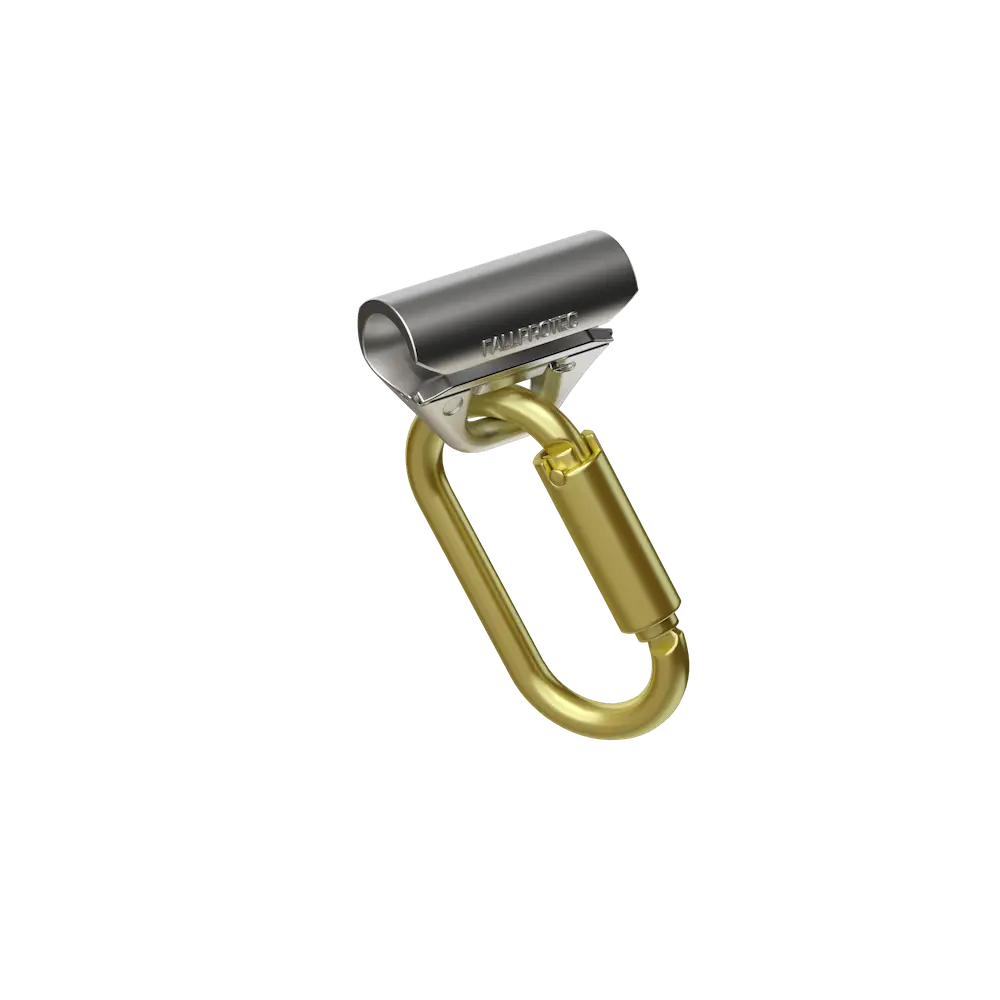

Opening glider with steel carabiner LDV001
"Off-line" energy absorber fitted with end anchor and crimping ring LDV143-A
Quickset fall arrester on inclined safety line 30°- 90° LDV275

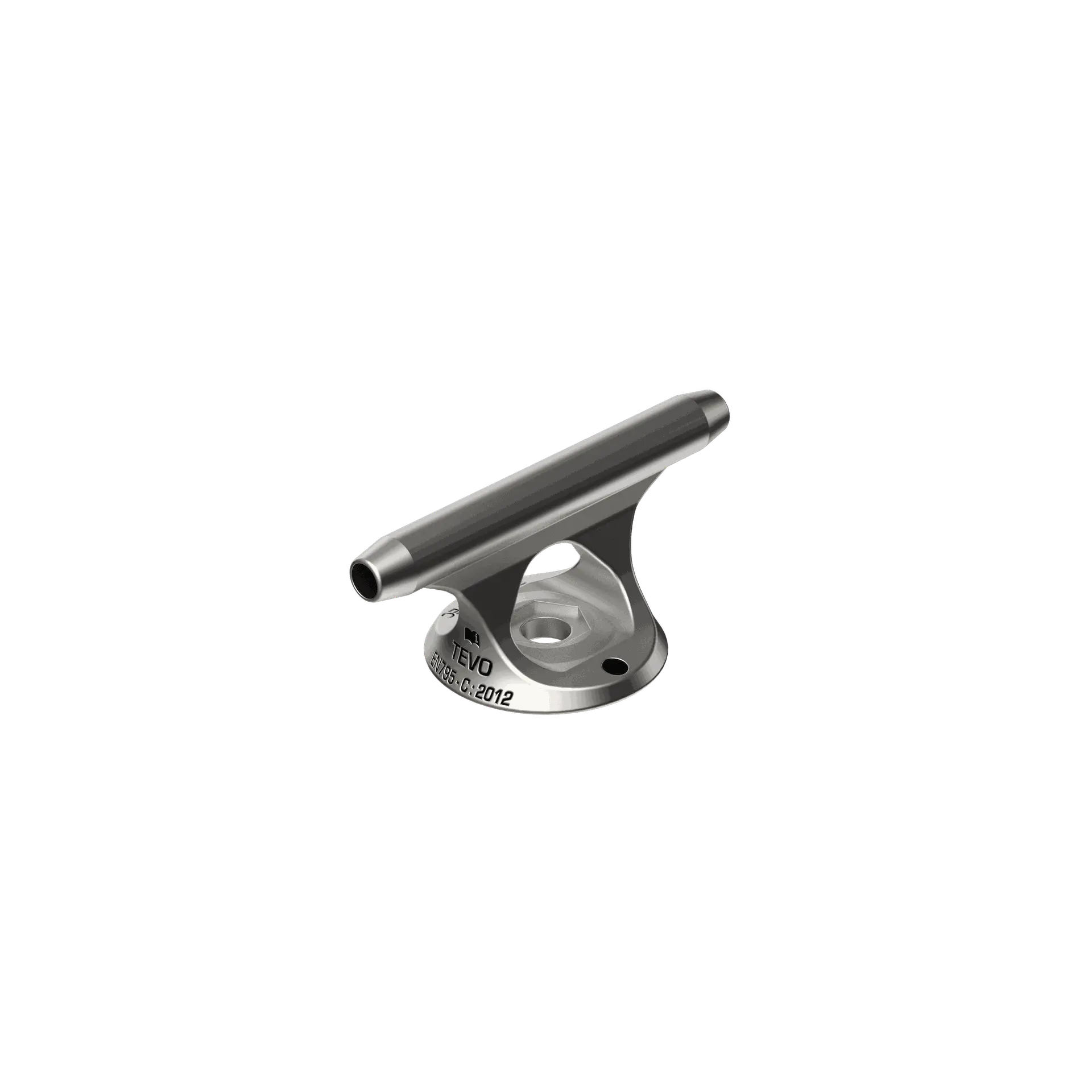

TEVO End and Intermediate anchor for horizontal or inclined lifeline LDV155

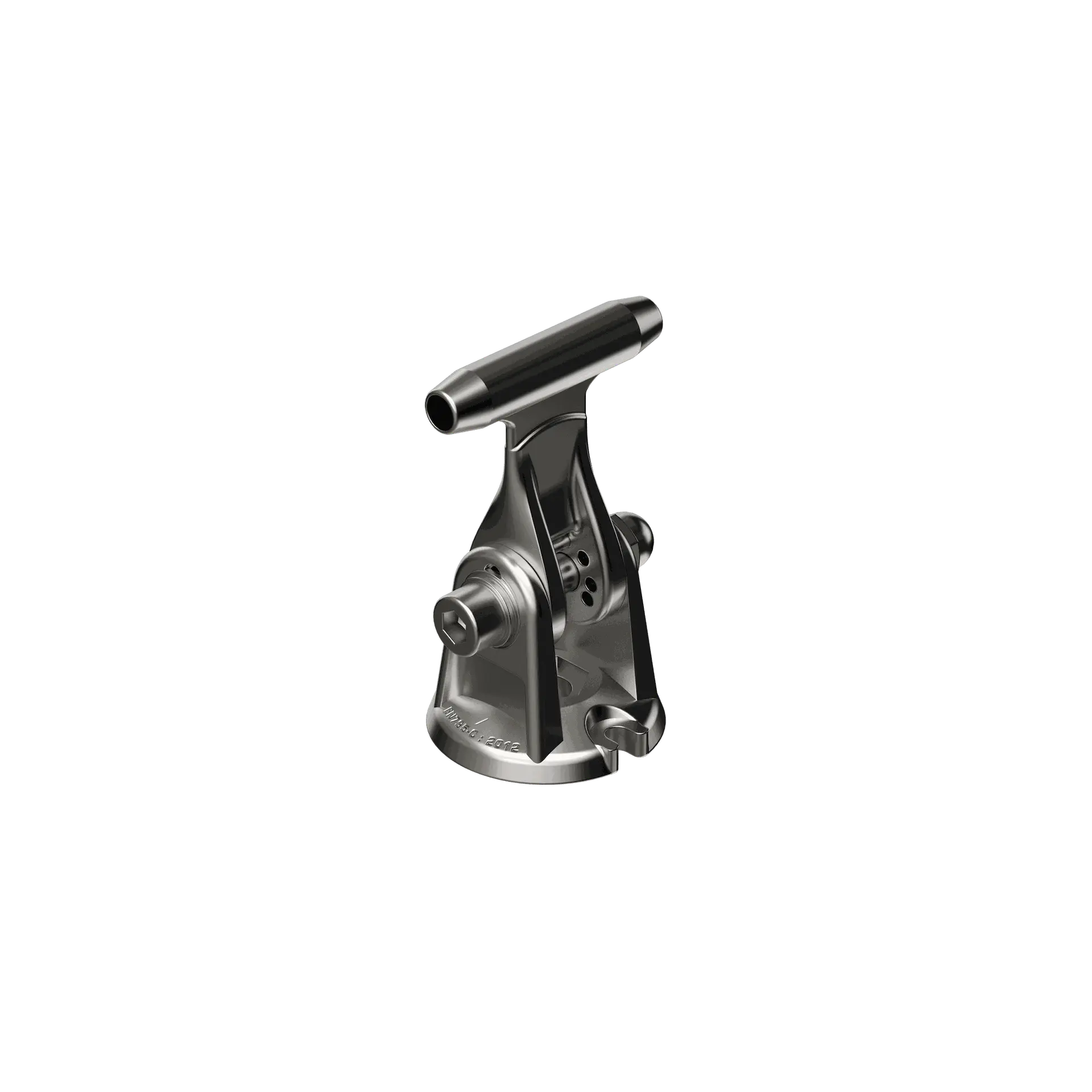

NEO Intermediate anchor for horizontal or inclined lifeline
End or top anchor for horizontal or inclined lifeline LDV002
