Securail vertical

The SecuRail Pro Vertical fall arrest is a rigid lifeline to secure access to any structure or roof. Clamped on an existing roof access ladder, this rail system secures the end user much better than the regular safety hoops. When equipped with foldable rungs, the SecuRail Vertical is a discreet system for architectural or residential buildings. When the SecuRail ladder is not used, the rungs are folded on the rail to minimize the visual impact.

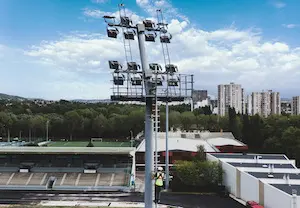

The MastLadder is a unique design with integrated rungs. It is entirely composed of high-grade aluminum for pylons, confined spaces, and industrial halls. Undeformable stainless steel brackets connect the ladders to the structure.

Advantages

Light aluminium rail
Undeformable
Freehand system
On ladder or with fixed rungs (MastLadder)
Ergonomic, easy use
Compatible with safe roof access extensions
Trolley equipped with an energy absorber
Easy to retrofit on existing ladders (Securail Pro)
Possibility of custom-made solutions with the Fallprotec’s engineering department

Applications

Fall arrest
Maintenance of electrical towers
Maintenance of wind masts
Working in confined spaces
Maintenance of industrial roofs
Maintenance of residential roofs
Maintenance of airport roofs
Maintenance of commercial office and mall roofs

Rail system attached to Flexbow structures equipped with energy shock absorbers

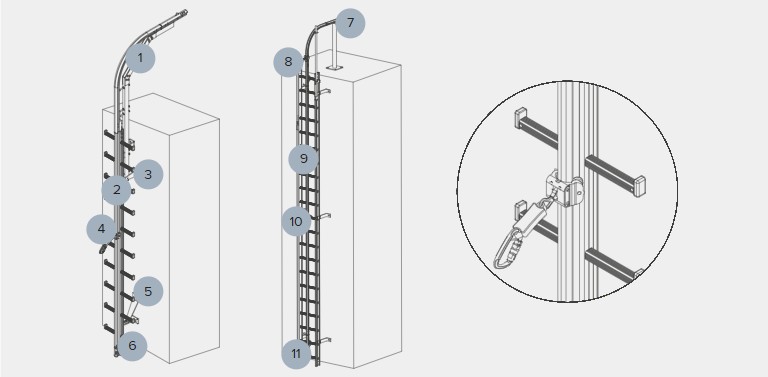

1 - Extension to be mounted on MastLadder to access the roof RHF715

2 - MastLadder RHF700

3 - Bracket for MastLadder RHF712

4 - Trolley Granvia 4 for Vertical Securail Pro with shock Absorber and Carabiner RHF518

5 - Reinforced bracket for MastLadder RHF710

6 - Removable tilting end stop kit for MastLadder RHF706

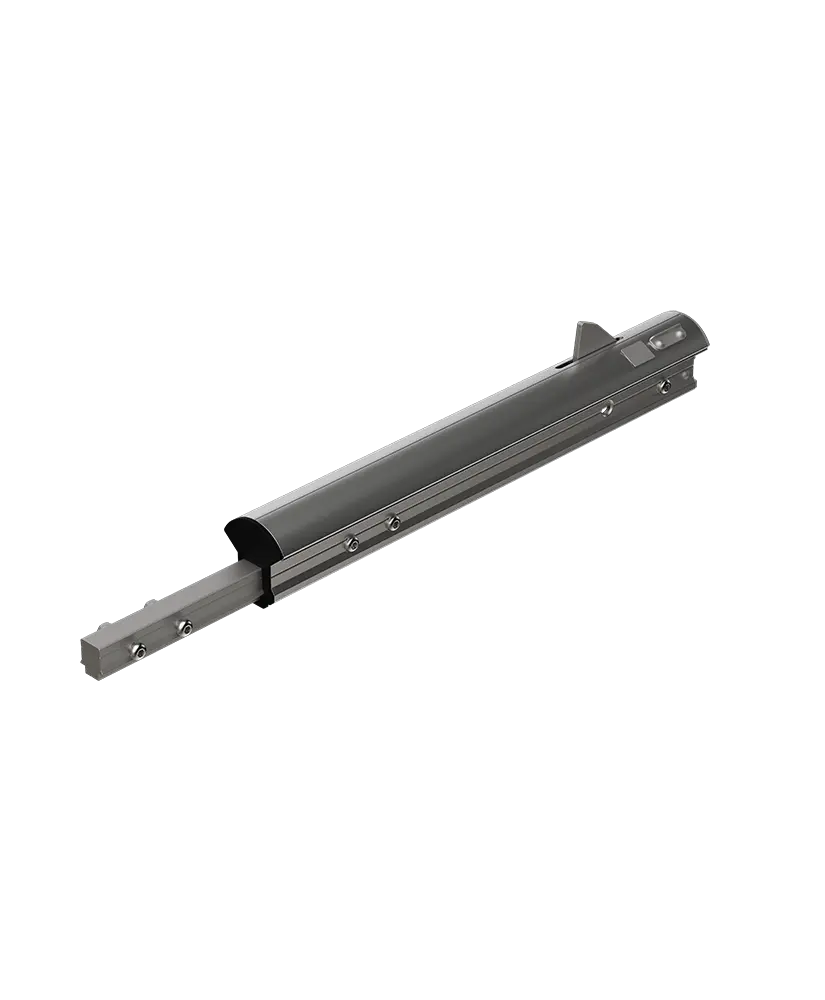

7 - Upper tilting end stop assembly including junction RHF520

8 - Trolley Granvia 4 for Vertical Securail Pro with shock Absorber and Carabiner RHF518

9 - Securail Pro RHF552 | RHF553

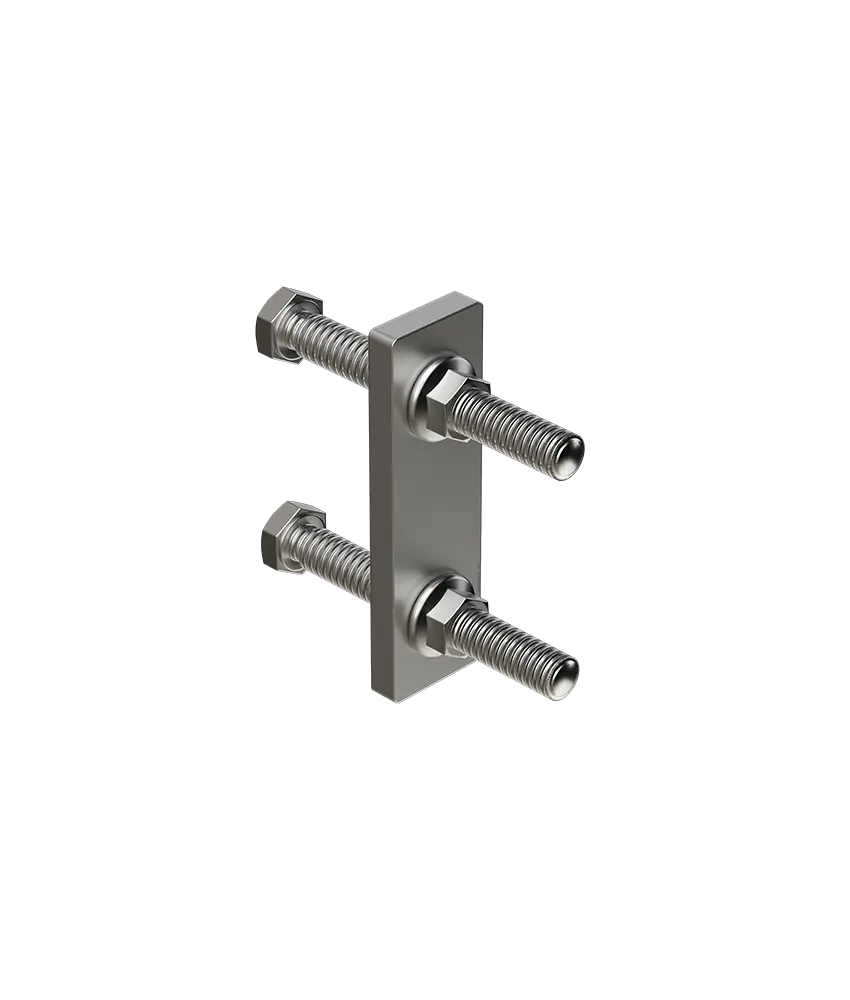

10- Fixing assembly Securail Pro vertical on ladder rungs RHF521

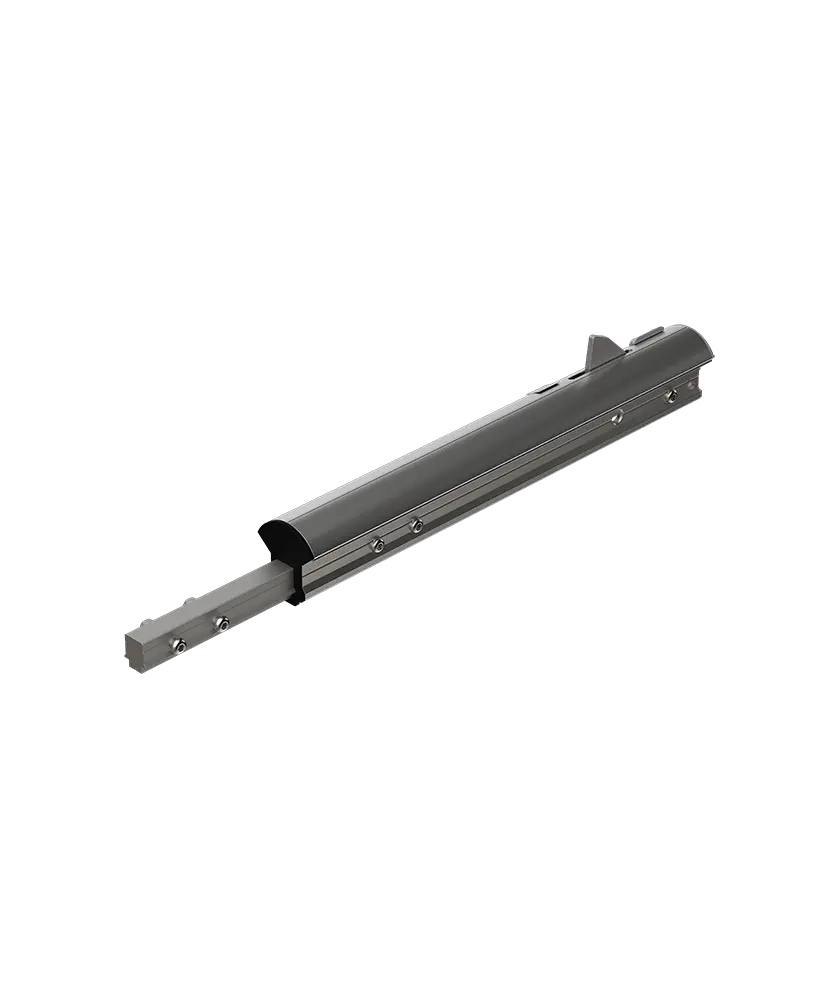

11 -Bottom tilting end stop assembly including junction RHF522
