SAFEACCESS RAIL

The SafeAccess is an undeformable fall arrest rail system for industrial applications. Installed in overhead configuration, it is the most suitable system when the fall clearance is low. This rail can be used for petrochemical industries as it is ATEX certified for potentially explosive atmospheres. The aluminum rail is protected by a high-quality powder coated surface treatment that resists to a marine environment.

The Flexbow is a standardized outrigger jib to secure loading bays and machinery. Equipped with an integrated energy absorber, it is a lightweight and yet robust design for industrial applications with a minimum fall clearance of 4m.

As the lifeline can also be installed high over the user, it is suitable for vast production halls, buildings and applications as aircraft fall protection systems.

Advantages

  • Up to 4 users
  • Up to 2 users when combined with Flexbow system
  • 5kg/m (3,35 lbs/ft)
  • Span of 6m (20’)
  • Undeformable
  • ATEX certified
  • Aluminium 6060T6
  • Possibility to fold away the Flexbow and SafeAccess system when not in use
  • Possibility of custom-made solutions with the Fallprotec’s engineering department

Applications

  • Fall arrest
  • Fall restraint
  • Work positionning

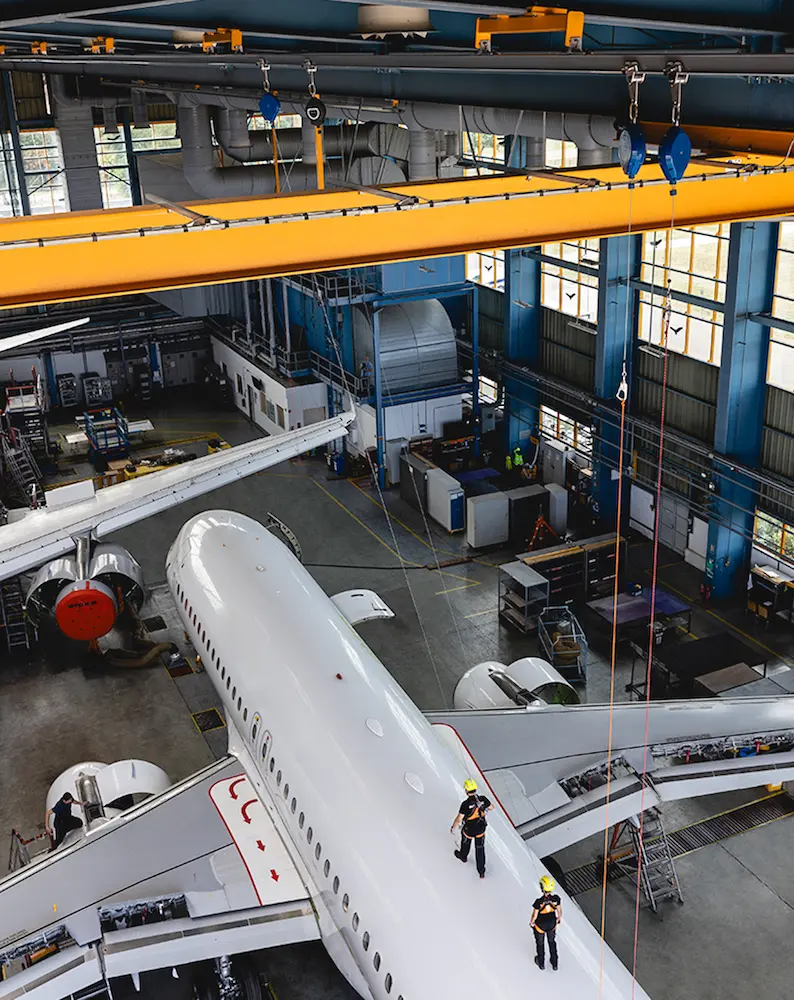

  • Maintenance of airplanes
  • Maintenance of busses, trams, subways and trains
  • Maintenance of machines in production facilities
  • Loading and unloading trucks / lorries

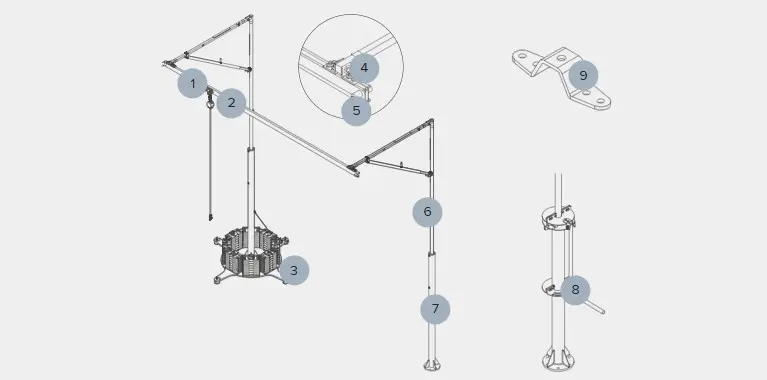

Rail system attached to Flexbow structures equipped with energy shock absorbers

1 - NAV 2 Mobile anchor point MHS023

2 - SafeAccess Powder Coated Rail MHS059

3 - Flexbow jib with 1T counterweight FLX016

4 - Set of 2 brackets + bolts MHS061

5 - End stop MHS017

6 - Flexbow jib FLX009 with shock absorber

7 - Flexbow post FLX012 for narrow spaces

8 - Rotatory lock kit FLX017

9 - Rotatory Junction Flexbow-SafeAccess FLX018

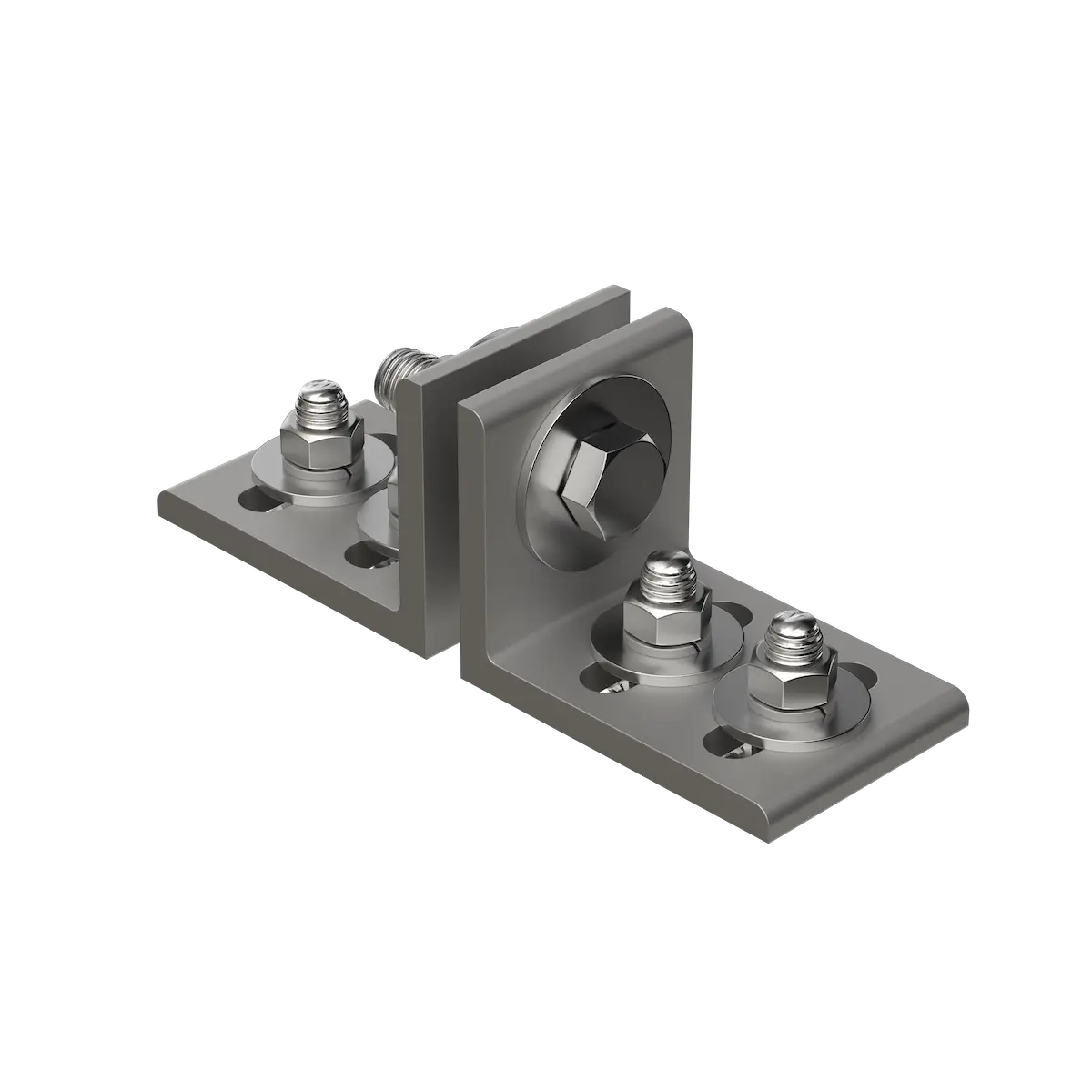

 Set of 2 Brackets and bolts mhs061

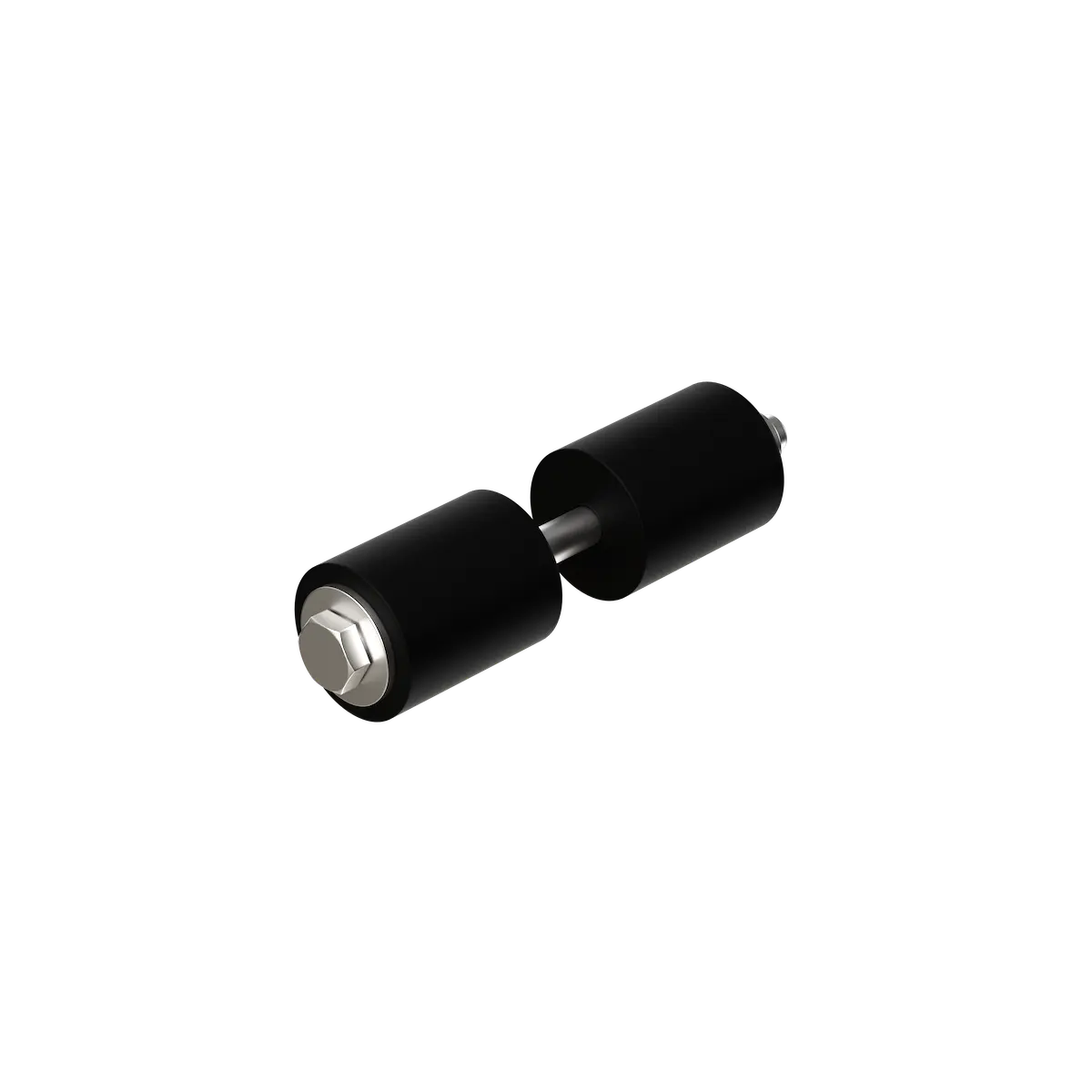

End stop mhs017


Base for flexbow jib with 1to counterweight flz016

Flexbow post height 3m flx012

Nav 2 mobile anchor point on safeaccess rail mhs023

safeaccess powder coated 6m rail mhs059

flexbow jib without tripod flx009
